Django Web Development Chatbot

Download Django and use it to build a web application with chat functionality. Start by creating a folder named my_project by running the command django-admin startproject my_project. Once we run this command, Django will generate a new folder named my_project, setting up the essential files and structure needed to begin development.

In a Django project, we can have multiple apps, each with a specific purpose. These apps should be related to each other in a way that supports the overall functionality of the project. Type python manage.py startapp blog to build one app called blog.

A folder named blog is created, containing files like admin.py, apps.py, models.py, views.py, and more.

• admin.py: Manages the integration with Django’s admin interface, allowing for authentication and administrative functions.
• models.py: A crucial file that defines data models for the app, such as users, comments, and other entities that need to be stored in the database.
• views.py: Contains functions that control what users see by rendering templates and handling logic for different pages.
• Migrations: These files handle database changes, allowing us to create and modify database structures as the models evolve.

To run the Django project, execute python manage.py runserver in the terminal:

Create urls for new app #

Create urls.py in the blog App Directory. Remember to import views from the views.py in the current directory. The name of the first url is ‘index’. The first parameter, '', is an empty string, meaning this pattern matches the “root” URL for the app.

views.index refers to a view function named index in the views.py file of the current blog app. The index function defines what should be displayed when a user visits the app’s root URL. For example, it might return an HTML template or JSON data.

The name parameter or name='index' is a unique name for this URL pattern. It’s used to refer to this path in templates and other parts of the code. We can use this name to generate URLs within Django templates like {% url 'index' %}.

# blog/urls.py
from django.urls import path
from . import views

urlpatterns = [
    path('', views.index, name='index'),
]

Then we need to tell our project or main app that we have this new url in urls.py of app blog. Open urls.py file in main project folder my_project. If we set this app’s URL pattern as path('blog/', include('blog.urls')) in the main urls.py, then this empty string’’ will match yourwebsite.com/blog/.

# my_project/urls.py
from django.contrib import admin
from django.urls import path, include

urlpatterns = [
    path('admin/', admin.site.urls),
    path('blog/', include('blog.urls')) # add path tp the main urls.py, include blog app urls.py
]

Build view function for new url #

If we open views.py in blog folder, there is nothing here now. We want to create this index function so it can be called in blog/urls.py file.

# blog/views.py
def index(request):
    # use HttpResponse to return something first
    return HttpResponse("This is my first url")

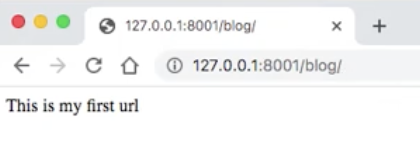

The first url can be found in my_project/urls.py and blog/urls.py. The index function built in blog/views.py is called in blog/urls.py.View the display on http://127.0.0.1:8000/blog/:

To define a new URL in Django, follow these steps:

• Add a URL in the Main urls.py: in my_project/urls.py, add a new URL pattern inside the urlpatterns list.
  • Whenever a new app is created, you should also include its URLs here to make them accessible in the main project.
• Define URLs in the App’s urls.py: Go to the urls.py file in the specific app folder.create one or more URL patterns within the urlpatterns list specifically for that app.
  • If the path string is empty (’’), it represents the root URL for that app.

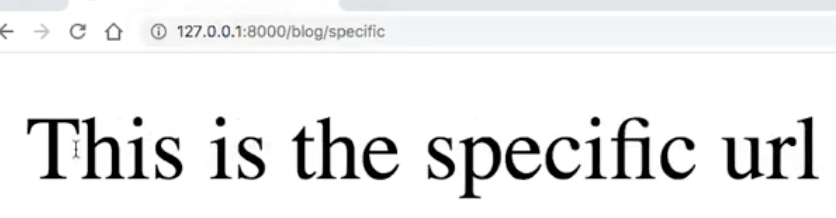

  • If the path string is set to something like ‘specific’, you can access it through root_path/specific/.
• Create a view function in app_folder/views.py to handle requests for the new page associated with the newly created URL.
  • This function can return a string, number, list, or other data types.

Build view functions for displaying #

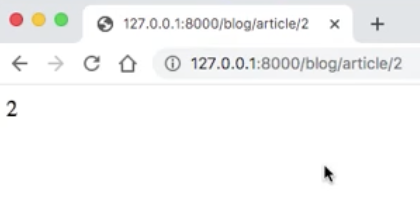

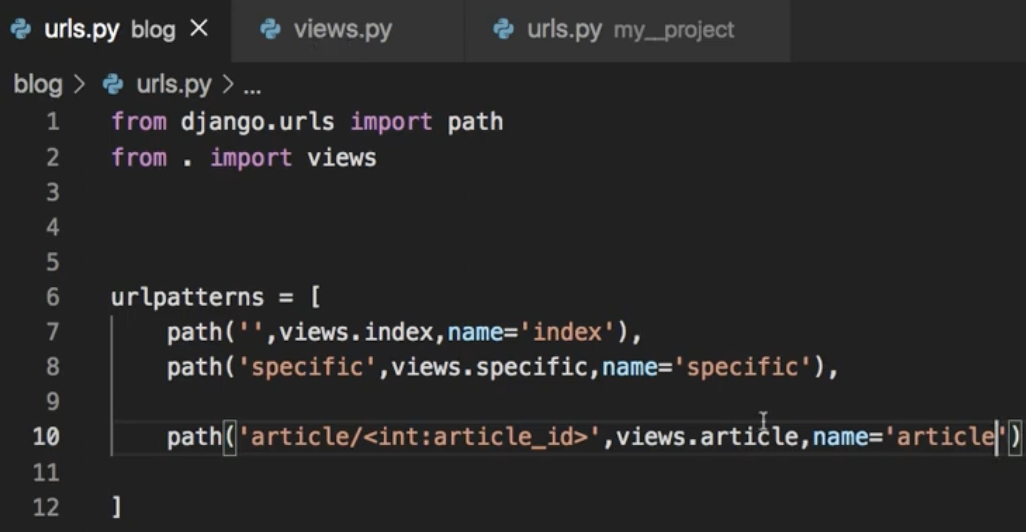

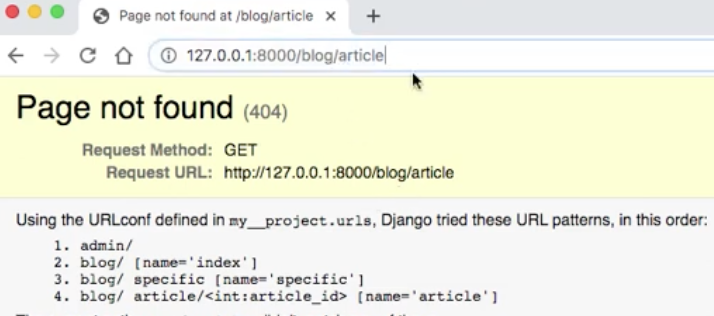

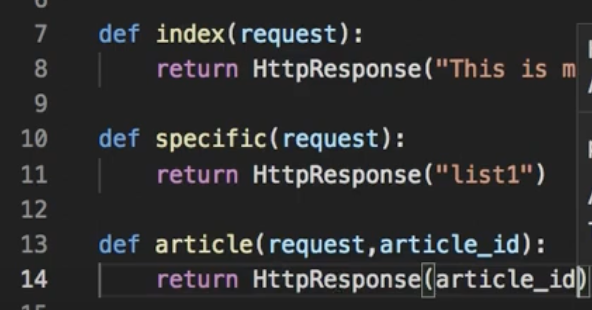

If we want to create multple number inserted url paths, we can create one path for article ids like <int:article_id> for passing one integer in the url, and then in views.py we define the article function with article_id parameter.

Leverage HTML and CSS #

In the blog app folder, create a folder named templates, and within it, create another folder named blog. Inside this blog folder, add the first HTML file, index.html. We can render this HTML view in views.py of the blog app by using render(request, 'blog/index.html', {'article_id': article_id}).

 def article(request, article_id):
     return render(request, 'blog/index.html', {'article_id': article_id})

• request: the current HTTP request.
• ‘blog/index.html’: the path to the HTML template.
• {‘article_id’: article_id}: a context dictionary that passes article_id to the template.

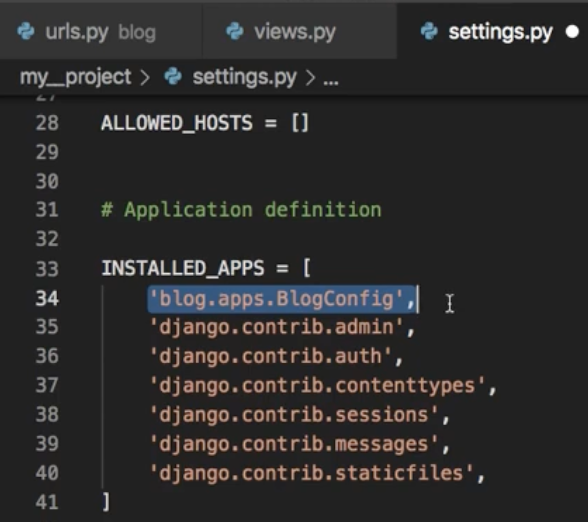

Afterwards, it’s important to add in element blog.apps.BlogConfig in INSTALLED_APPS list of the settings.py of the main project folder. So we are able to return html file to users.

• App Recognition: Adding blog.apps.BlogConfig registers the app with Django, making it aware of this app.
• Template & Static Files: Django loads templates and static files only from registered apps.
• Database Models: Django includes models from registered apps during migrations to set up database tables.

Next, we’ll add CSS to improve the page’s appearance. Start by creating a folder named static in the blog app directory. Inside static, create another folder named blog, and then add a new file called style.css in static/blog. To import this CSS file in index.html:

• Use {% load static %} to load the static folder
• Below this line we need specify loading static 'blog/style.css':

<link rel="stylesheet", type="text/css", href="{% static 'blog/style.css' %}" />

Now we can add changes to style.css, for example:

h1 {
    text-align: center;
    color:rgb(25, 162, 203);
}

Note: Each time we make changes to style.css, we may need to restart the server.

Work on chatbot user interface #

In order to make the UI looks better, we need to edit the index.html and style.css files for the user interface. In the chatbot id
